Security Fence Installation Guide 2026

Security fences keep intruders out and protect assets. A poorly built fence can fail fast and cost more in repairs. This security fence installation guide walks you through every phase, from site assessment to final maintenance, so you can finish on time and meet compliance.

We’ll show you how to pick the right fence type, gather the right tools, prep the ground, install posts and panels, add gates, and keep the system working for years.

Here’s the data that backs our advice.

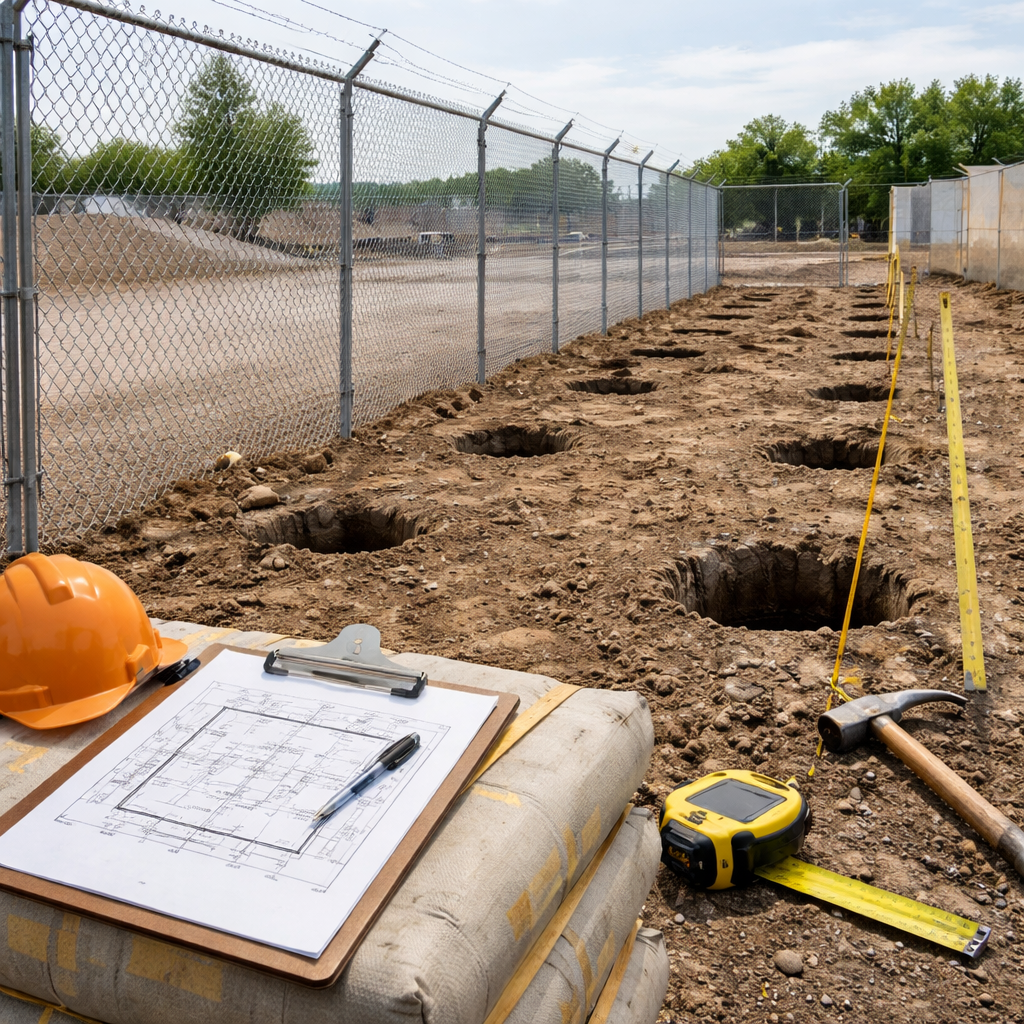

Step 1: Assess Your Property and Choose the Right Fence Type

Start by walking the site. Look at the perimeter, terrain, and any existing structures. Note where the fence will meet roads, driveways, or other utilities. This first step tells you if you need a tall anti-climb mesh, a standard chainwire, or a custom-height panel.

Next, decide on the security level. A government facility may need the 358 Mesh Fence that meets AS/NZS 4534-2006. A commercial warehouse might be fine with a 6X6 W4 mesh that meets ASTM A1064. Our key findings show that 358 Mesh is the only coated mesh that hits the premium standard, while every uncoated ASTM mesh falls short. That matters because a coated mesh resists corrosion, saving you money on future repairs.

Consider the environment. Coastal sites face salt spray, so a zinc-aluminium coating helps. Inland sites may get heavy rain, so drainage is a priority. If the ground is rocky, you might need adjustable post brackets.

Think about future growth. Will you add a gate later? Will you need a taller fence for new security requirements? Picking a system that can be expanded now avoids costly re-work.

Here’s a practical tip: create a simple spreadsheet that lists each fence type, its coating, compliance rating, and any documented pitfall. Then rank them against project specs. This gives you a clear view before you talk to suppliers.

When you’ve narrowed the options, check the latest trends. Everfence’s 2026 trends report notes a rise in privacy slats on PVC panels for a sleek look while keeping security high.

But don’t forget durability. Broward County Fence’s material guide compares galvanised steel, hot-dip aluminium, and PVC. It shows that hot-dip galvanised steel holds up best under heavy wind loads.

Finally, match the fence type to the project budget. High-grade 358 Mesh will cost more upfront but can lower lifecycle costs because it meets the top compliance and needs less frequent replacement.

Step 2: Gather Tools, Materials, and Permits

Before you swing a shovel, make a checklist. This saves time and keeps you from missing a critical item that could delay the project.

Core tools include a post-hole digger or auger, a level, a string line, a tape measure, a concrete mixer, and safety gear like gloves, eye protection, and earplugs. For larger jobs, a hydraulic breaker can help break through rock.

Materials depend on the fence type you chose. For 358 Mesh, you’ll need structural steel posts (often 100UC), 50 × 50 mm angle rails, the mesh panels, and concrete for footings. For a standard chainwire, you’ll need galvanized wire, tension bands, and possibly barbed wire accessories.

Don’t skip permits. In NSW, the RMS requires a fence permit for heights over 2 m or for certain zones. Check the local council’s website and submit a plan that shows fence height, location, and compliance with the AS/NZS 4534-2006 or ASTM standards you’re using.

Here’s a practical tip: use a mobile inspection app to capture photos of the site, add notes, and generate a PDF report that you can attach to your permit application. It speeds up the approval process.

For a solid inspection routine, see the Boundary and Security Fence Inspection Checklist from Fulcrum. It lists every element you must check during and after installation.

Also, consult the official NSW state guidelines PDF for detailed construction standards. It covers concrete mix ratios, post embed depths, and drainage requirements.

When you’ve gathered everything, store it in a dry, locked area on site. This protects tools from theft and weather, keeping the schedule on track.

Step 3: Prepare the Ground and Mark the Layout

Ground prep is the foundation of a long-lasting fence. Bad soil prep leads to sagging posts and costly repairs.

First, clear the line of any vegetation, rocks, or debris. Use a brush cutter for grass and a shovel for larger roots. If you hit rock, a hydraulic breaker can break it up, as noted in the Groupe Bellemare guide.

Next, measure and mark the fence line. Snap a string line between two stakes at the exact height you need. Use a line level to keep it straight. This line will guide post placement and ensure the fence runs true.

Now dig post holes. The depth depends on local frost line and fence height. A rule of thumb is one-third of the post length in the ground, but for 2 m high security fences, aim for at least 800 mm depth. Use a post-hole auger for consistent diameter.If the soil is clay, add a layer of crushed stone at the bottom of each hole. This improves drainage and prevents concrete from cracking. For sandy soil, compact the base with a tamp before pouring concrete.

Mark the exact spot for each post with a small stake. Double-check spacing , most commercial fences use 2.5 m to 3 m center-to-center spacing. Consistent spacing helps tension the mesh evenly.

Here’s a pro tip: before you pour concrete, insert a temporary bracing board to hold the post upright while the concrete sets. This avoids lean and saves rework.

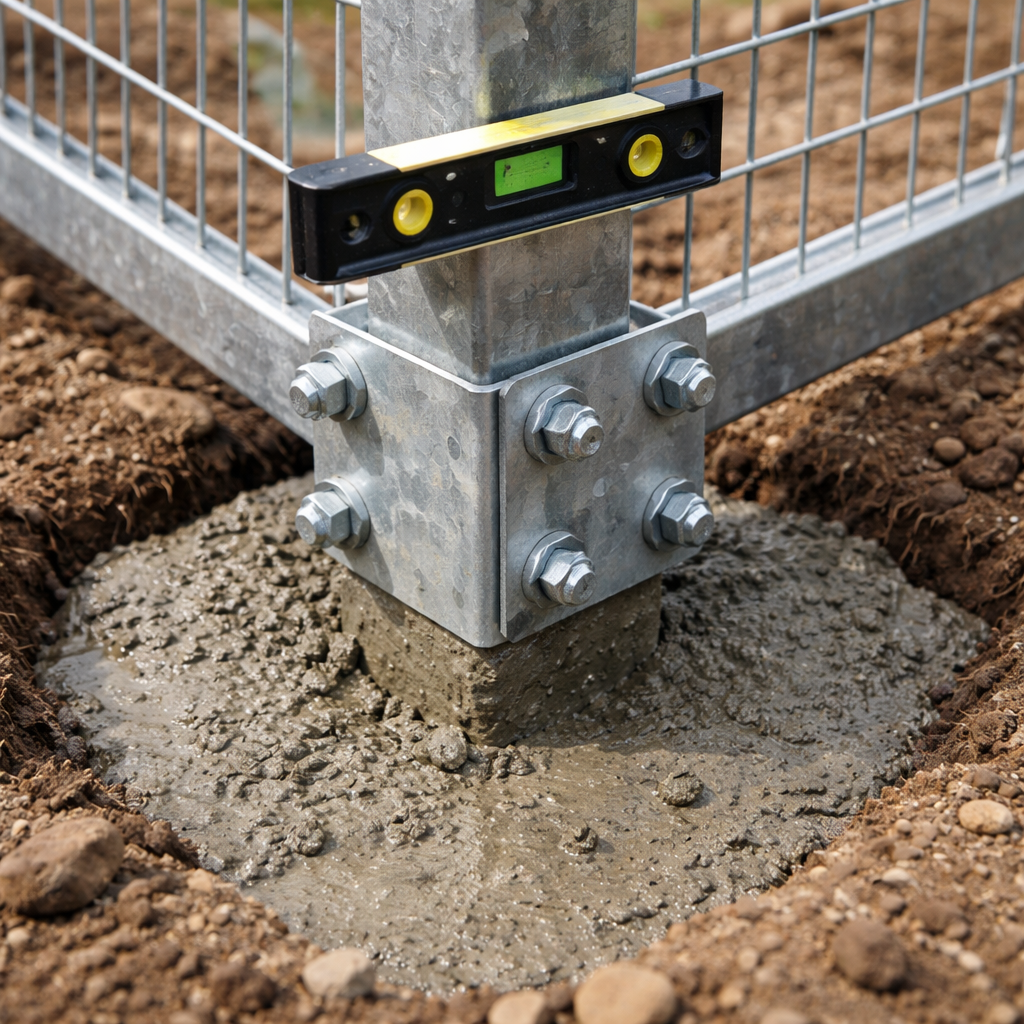

Step 4: Install Posts and Attach Panels

With the holes ready, it’s time to set the posts. This step defines the fence’s strength.

Place each steel post into its hole, ensuring it’s plumb with a level. Use a temporary brace to keep it vertical while you mix the concrete.

Mix concrete to a workable consistency , about the texture of peanut butter. Fill the hole around the post, making sure there are no air pockets. Use a tamp to compact the concrete in layers. Let it cure for at least 24 hours before loading the fence.

After the posts have set, attach the mesh or panels. For 358 Mesh, bolt the top and bottom angle rails to the posts using high-tensile bolts. Then slide the mesh into the rails and secure it with clips. Keep tension even across the span to avoid sag.

If you’re using chainwire, stretch the wire between posts using a come-alike tensioner. Tie it off with a tight twist and a lock-nut. Add barbed wire on top if the spec calls for it.

Check alignment after each panel. A small deviation early on can magnify across the fence line. Use a string line stretched over the top rails as a visual guide.

Here’s a quick checklist for this phase:

• Post plumb and level
• Concrete cured 24 h
• All bolts torqued to spec
• Mesh tension uniform
• Final alignment verified

When the main line is up, you can move on to gates.

Step 5: Add Gates, Finishing Touches, and Maintenance Tips

Gates are the most used part of any fence, so they need extra care. Choose a gate that matches the fence’s security rating. For high-grade sites, a swing gate with anti-climb mesh and a robust locking mechanism works best.

Start by anchoring the gate posts. Use the same concrete depth and post size as the main line. Then hang the gate leaf on heavy-duty hinges. If you need automation, LS Fencing offers motorised options that meet the same compliance standards.

Secure the latch. A double-bolt latch with a tamper-proof padlock provides strong resistance to forced entry. For vehicle gates, add a Razar Tape® topping for extra deterrence.

Finish the fence with a protective coating if you chose an uncoated steel option. Powder-coat in a colour that matches the site’s aesthetic, or leave it hot-dip galvanised for maximum corrosion resistance.

Now for maintenance. Schedule a semi-annual inspection using the checklist from Fulcrum. Look for rust, loose bolts, or damaged mesh. Replace any worn sections promptly.

Apply a rust-inhibiting spray to any exposed metal after each inspection. Keep the area around the fence clear of vegetation that could trap moisture.

Document every maintenance visit with photos and notes. This creates a record that can be useful for compliance audits and future tender bids.

For a trusted partner, consider High Security Fencing. Their experience with tier 1 builders and government contracts ensures the fence meets every standard without shortcuts.

Finally, train site staff on basic fence safety. Teach them to spot early signs of wear, to report any damage, and to follow lock-up procedures at shift change.

Conclusion

Getting a security fence right the first time saves money, avoids legal headaches, and protects your assets. This security fence installation guide covered how to assess the site, pick the right fence type, gather tools and permits, prep the ground, set posts, attach panels, add gates, and keep the system in shape.

Remember the quick verdict: 358 Mesh offers the top compliance, but LS Fencing’s uncoated solution avoids the common coating pitfall and delivers reliable performance. Use the checklists, follow the step-by-step process, and you’ll finish on schedule and within budget.

If you’re ready to start, reach out to a qualified installer who can tailor the system to your exact needs. A well-planned fence will give you peace of mind for years to come.

FAQ

What permits are needed for a commercial security fence in NSW?

You’ll need a local council permit if the fence exceeds 2 m in height or is in a heritage zone. The permit must show the fence height, location, and compliance with AS/NZS 4534-2006 or ASTM A1064. Submit a site plan, engineering details, and a copy of the compliance certificate. Expect a review period of 2-4 weeks.

How deep should post holes be for a 2.5 m high security fence?

Generally, post depth should be at least one-third of the post length. For a 2.5 m fence, aim for 800-900 mm depth, depending on soil type and frost line. In rocky soil, use a hydraulic breaker to reach the required depth, and add a gravel base for drainage before pouring concrete.

Can I use a coated mesh and still meet AS/NZS 4534-2006?

Yes, the 358 Mesh Fence with a zinc-aluminium or hot-dip galvanised coating meets the 4534 standard. It is the only high-security mesh that does so, overturning the old belief that only bare-steel mesh can meet the standard.

What maintenance schedule is recommended for high-security fences?

Inspect the fence twice a year, preferably after winter and before summer. Look for rust, loose bolts, and damaged mesh. Tighten any loose fittings, replace corroded sections, and apply a rust-inhibiting spray. Keep vegetation trimmed back to avoid moisture buildup.

How do I choose the right gate type for a high-security fence?

Match the gate’s material and coating to the fence’s. For 358 Mesh, use a swing or sliding gate with the same zinc-aluminium coating. Add a tamper-proof lock and, if needed, a motorised actuator that complies with the same standards. Consider adding Razar Tape® for extra deterrence.

What are the cost factors for a security fence installation?

Key cost drivers include fence type, coating, post spacing, ground conditions, and any required permits. Coated meshes like 358 Mesh carry a higher material cost but lower long-term maintenance. Uncoated ASTM meshes are cheaper upfront but may need more frequent repainting or replacement.

Is a DIY installation feasible for large commercial projects?

For small temporary fences, a skilled crew can do it. For large, high-security projects, you need certified installers who understand compliance, concrete footings, and tensioning methods. A mis-step can cause safety hazards and breach contract terms.

How does LS Fencing avoid the common coating pitfall?

LS Fencing’s own offering does not list any coating-related exclusions. This means the product can be specified without worrying about the “coated mesh excluded” clause that appears in many ASTM listings. It simplifies compliance checks for NSW projects.
